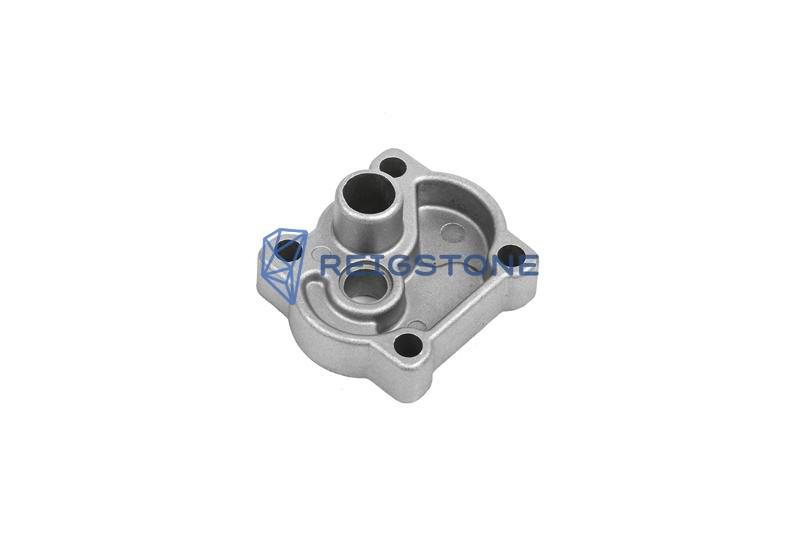

Die casting valve housing
Description
Reviews
Item: Die casting valve housing
Weight: 0.22kg
Size: L200xw160xH80mm
Material: AISi119Cu3
Tooling style: 2 cavities
Tolerance grade of casting: CT-5(ISO-8062)
Die casting machine: 280TONS
Tolerance grade of machined feature: ISO-2768 mk
Machining equipment: CNC machining &Tapping
Surface finish: Shot blasting
Application: Valve
Exported country: Italy
Delivery: 30000pcs/30days
Quite compact
Enough compact can make the part stronger on the
aspect of mechanical properties.Instead of your other idea maybe with steel or
other heavy metals, save cost on material and transporting.
Smooth surface
Smooth and flat surface makes appearance looks beautiful, and good texture.
Class 2-3 for die casting surface we can guarantee, following NADCA standard.
Precise dimension tolerance
Our as-cast usually can achieve CT5-CT4 grade,
obviously it can reduce some machining processes and cost with such accurate
casting dimension tolerance.
No or very few small porosities
It can help you to think various processes to develop project, when you don’t need to consider leaking,lighten your load and save your extra cost.
Ø Tooling design:
Reverse engineering
3D building
Cavity filling simulation
35days for normal tooling manufacturing, specific case depends on dimension and complexity of the part.
Ø Die casting
Material: ADC-12/ADC-10/A380/383/AlSi10Mg/others
Casting grade: CT-5 -CT4, following ISO-8062
Casting machine type: 200/280/400/630/800/1250, by LK, total 7 sets.
Casting weight: 20g-12kgs
Projected area: max 700*500*400mm
Ø Secondary CNC machining
GD&T grade: Limited 0.003mm
Machining equipment:
16 CNC machining centers, by Haas, USA and UTIG, South Korea.
14 CNC Lathe,
2 Automated turning centers, by Takisawa, Japan
20 Bench Drills
20 Threading machines.
Ø Surface finish:
plating/electrophoresis/powder coating/painting/anodizing/ polishing/sand blasting/shot blasting
Ø Diversified packaging: carton/plywood pallet/ plywood pallet box, customized packaging solution is also available.
Ø On-time delivery: 97% on-time delivery rate was our last year record, we are well ready to satisfy you with much faster service in coming new orders.
For more information about our aluminum die casting process, please click here aluminum die casting.
－ Lighting
－ Valve body
－ Automotive parts
－ Gearbox housing
－ Motoring housing
－ Electronic enclosure
－ Tools & hardware
－ Construction
For more information about industries involved, please click here Industries.
Trade terms: Incoterms2010 FOB/EXW/CIF
Payment terms: T/T, L/C, Western union.
Delivery ways: by air/sea/railway.
Loading port: Ningbo/Shanghai, or other ports.
Lead time: 30 days for a production cycle.
